Stronger Design
Achieve wider spans with standard parts – no reinforcements needed for ambitious conservatory roof designs.
Thermally Broken
Boosted thermal performance thanks to a fully thermally broken aluminium frame for superior energy efficiency.
Modern Looks
Squared, contemporary aesthetics offer a clean, up-to-date finish that appeals to today’s homeowners.
Designed with fabricators and installers in mind

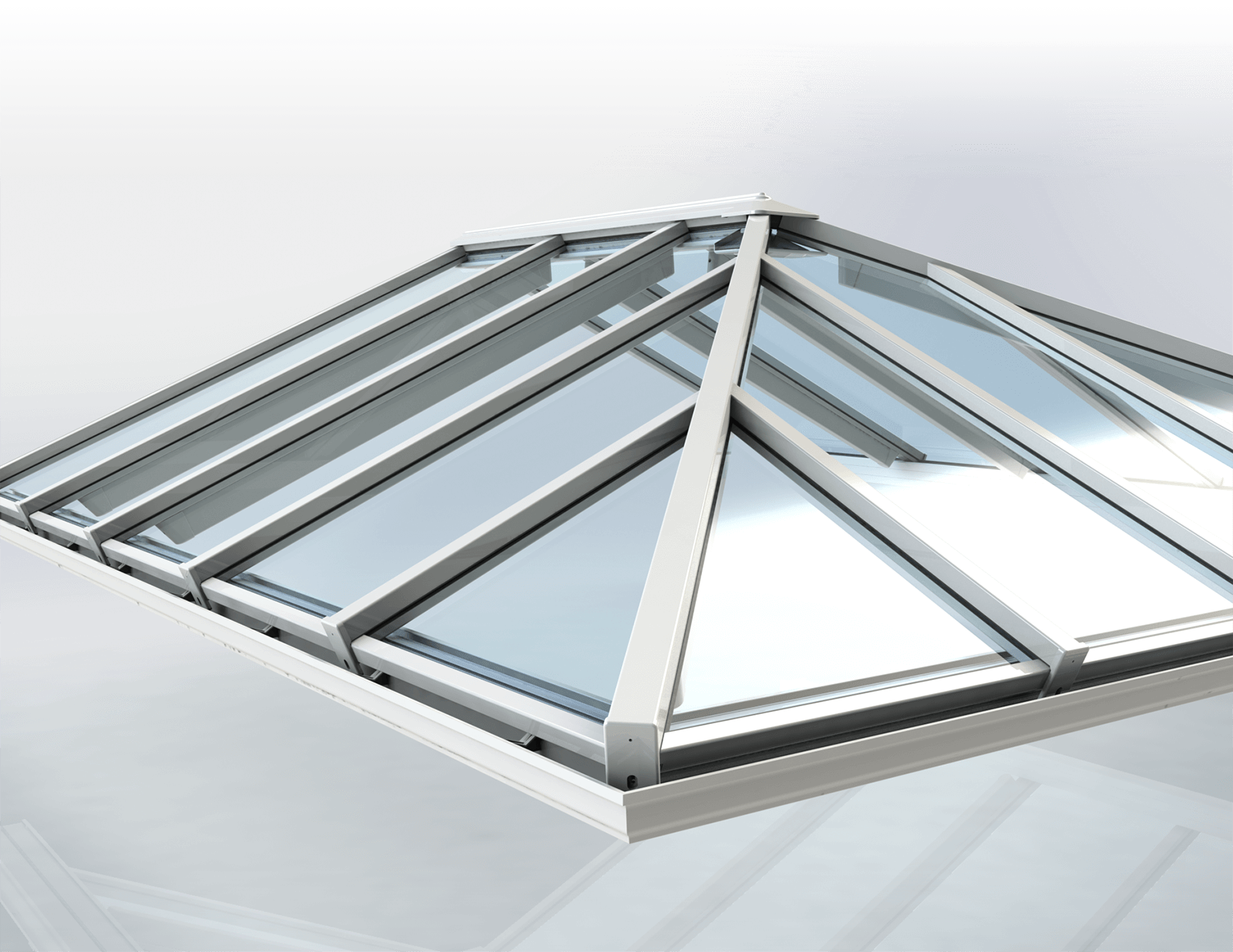

The S2 conservatory roof system was developed to help fabricators and installers offer something different – a sleek, thermally efficient roof system with excellent structural capability.
Every detail of the S2 has been engineered for easy fabrication and fast installation. From the slimline aluminium frame to the impressive structural bolster, this is a conservatory roof built to work hard and look good doing it.
- Glazing Bars
- Eaves Beam
- Ridge & Wallplates
- Glazing
- SheerVent
Slim, strong and thermally advanced
Our chambered PVC-U cappings come as standard, with aluminium top caps available for a high-end finish.
The glazing bars for the S2 system have been engineered with a modern and slimline look, but they do not compromise in either strength or appearance.
The S2 has been designed to cater for large projections associated with modern glazed extensions that maximise the glazed area to create the grand designs today’s consumer’s desire.
Contact Us

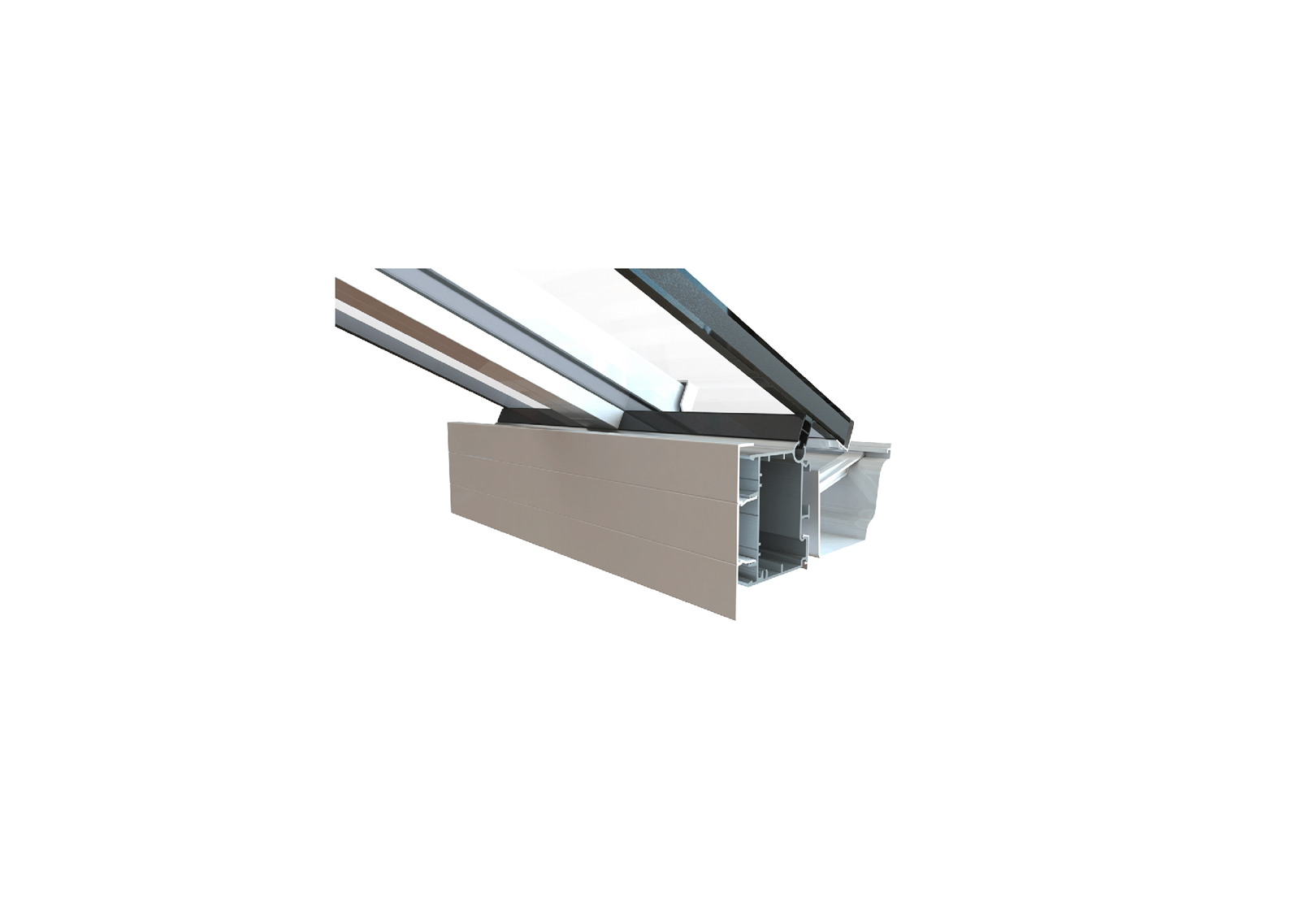

Engineered for wide openings
The box eaves beam accommodates large spans for doors, with strength-enhancing design and modern detailing whilst accommodating all design and style options.
- More suitable box section design for better stability and strength as standard
- Circular channel to accept pivot bolt which allows for greater pitch variations
- Aluminium corner cleat, designed to provide a strong structural connection & able to accommodate any angle
- Square design universal internal cover in both PVC-U and aluminium options
- Multi-use internal cladding for various applications, i.e. eaves, ridge, valley for reduced stockholding
- Eaves beam combined with eaves beam gable adaptor to create a flat support for gable frames

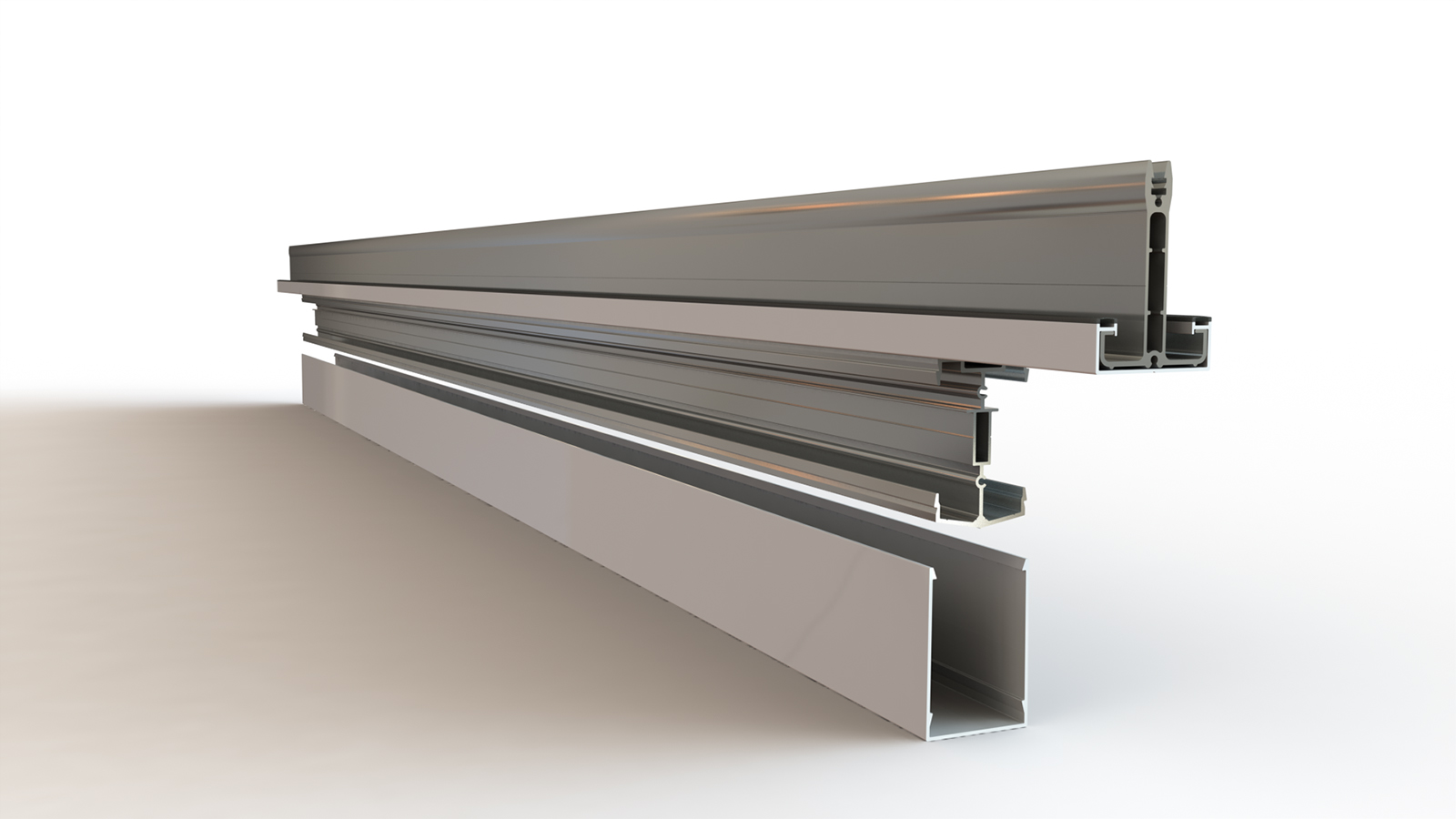

We also provide an eaves beam bolster, which works seamlessly with the S2 roof providing additional support to accommodate wider openings for bi-folding doors and sliding doors.
- Innovative discreet design to sit over and behind the existing eaves beam
- Aluminium internal clip in cladding to match the existing eaves cladding
- Available in White, Rosewood and Grey as standard
- Available in any RAL colour
Low profile aesthetics with strength built-in
Slimline ridge and wall plates create a clean roofline and accommodate all pitch angles and styles with ease.
Ridges
- Slimline multi-chambered ridge system as standard
- Fixed and variable ridge options
- Square internal cladding for modern uncluttered aesthetics
- Utilises same internal cladding as eaves beam for matching cladding
- Two styles of final & cresting available
- Low profile ridge option as standard
- Available in PVC & full aluminium options
- Available in any RAL colour
- Foam and brush weather seal

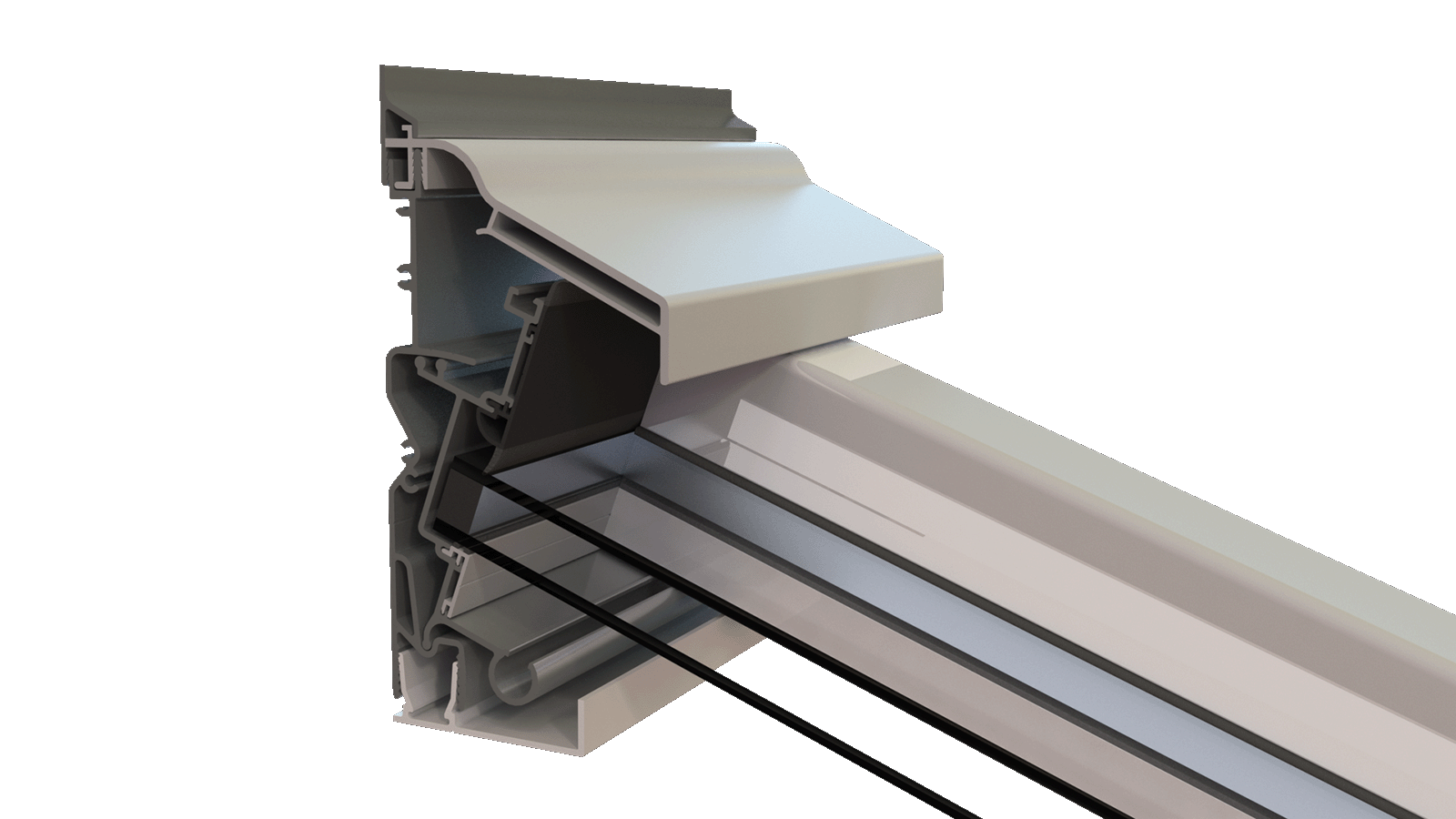

Wall Plates
- 2.5-degree wall plate for low pitch solutions
- Simple and easy to install, fixed 5-10˚ wall plate for standard lean-to and canopy roofs
- Variable wall plate with radius ends for hipped lean-to applications
- Variable wall plate for pitched range of 5-30˚
- Available in any RAL colour
PVC and aluminium cladding option
Contact Us
High performance glass options
Choosing the right high performance roof glass is one of the most important elements to consider when installing a conservatory roof, with benefits including, self-cleaning properties, and beautiful visual tint options to suit any property style.
We offer a full range of glass and Low-E glass that has excellent U-Values, solar heat reflection, light transmission and is self-cleaning.
You can choose from: Blue, Neutral, Aqua, Bronze, Sunshade Blue, Dark Bronze.
We can also supply triple glazed and oversized glass.
Contact UsKey Features
Versatile Pitch Range
S2 systems can accommodate every style and combination of roof pitch with a pitch range of 2.5 – 37.5°
Variable Internal Pelmet
Create an orangery-style perimeter detail that conceals lighting and adds premium appeal to any conservatory roof.
Aluminium Gutter Shroud
Architectural-grade aluminium gutter shroud conceals rainwater systems, adding a clean, premium finishing touch.
Chambered PVC-U Cappings
Standard multi-chambered PVC-U cappings deliver excellent thermal efficiency while reducing overall fabrication time.
Slimline Aluminium Frame
The slimline appearance of the roof maximises natural light while meeting modern aesthetic expectations.
Box Gutter System
Our ultra-strong, self-supporting box gutter eliminates gallows brackets and integrates seamlessly with the full roof system.
Speedy Installation
The S2 Conservatory Roof is supplied in installation-ready kits to make fitting easier and much quicker.
Aluminium solutions designed to deliver and engineered to impress
Download our Sheerline Bespoke brochure
Download our comprehensive brochure to have our complete range of high-performance aluminium solutions to hand – we’ve got everything you need.
FAQs
Here are the answers to some common queries we receive about the S2 conservatory roof system.
We offer 24mm and 36mm glass, in a range of performance and colour options, including Blue, Neutral, Aqua, Bronze, Sunshade Blue, Dark Bronze.
Yes – the box eaves beam, and eaves beam bolster make large bi-fold or sliding door spans possible without compromise.
It’s fully thermally broken and designed for superior thermal regulation, making it ideal for year-round comfort.
Yes, including aluminium cappings, gutter shrouds, and full aluminium cladding in any RAL colour for a high-end finish.
Absolutely. Every component is designed with ease-of-fit in mind and it is supplied in installation-ready kits, meaning fewer parts, less fuss, and faster installation on-site.
Why choose the S2 system
The S2 isn’t just a conservatory roof, it’s the result of years of additional development and hands-on industry insight.
At Sheerline Bespoke, we’ve combined proven technology with new innovations to deliver a solution fabricators and installers can rely on. It’s all about saving time, boosting performance, and standing out in a competitive market.
